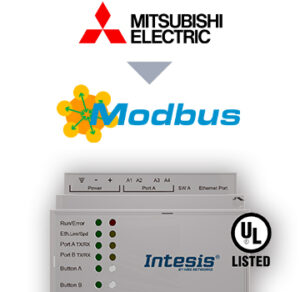

Intesis Mitsubishi Electric City Multi systems to Modbus TCP/RTU Interface – 100 units

The Mitsubishi Electric interface has been specially designed to allow bidirectional control and monitoring of Mitsubishi Electric City Multi systems from a BMS, SCADA, PLC or any other device working as a Modbus master.

• UL Certified.
• Scan: Automatic identification of the units presents in the VRF system.
• The interface is a Modbus slave able to manage Modbus TCP and Modbus RTU simultaneously.
• Up to 6 Modbus TCP clients (incoming sockets) are supported.
• Datalogging through external USB port.
• Configuration through IP or USB (Console) port.
• Front cover LED indicators to provide easy to check communication status on both the Ethernet and serial ports.
• Automatic updates for both Intesis MAPS and interface’s firmware.

This integration requires the Mitsubishi Electric City Multi AC system to be equipped with a Mitsubishi Electric’s Centralized Controller for MNET (G-50A, GB-50A, AG-150A, EB-50, EW-50 or AE200 and newer). This Centralized Controller offers the signals of the City Multi AC system through XML protocol at its Ethernet port, which is accessed by the Intesis.

SET UP BY INTESIS MAPS

The configuration is carried out using the Intesis MAPS software. This one allows you to define your own settings for the device and offers extra functions available for all the new generation gateways. Thanks to the scan function, which allows to automatically discover all the units available in the installation, get the interface ready to work in a really short time.

Intesis MAPS makes it easy to identify any malfunction in the installations thanks to its robust diagnostic feature.
