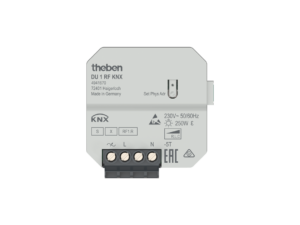

KNX RF Dimming Binary Actuator

£143.87 + VAT

  • 1-way wireless flush-mounted dimming actuator KNX
  • Secure communication via KNX-RF with support of “KNX Data Secure”
  • Optimised dimming output for dimmable energy-saving lamps, LEDs, incandescent and halogen lamps, and dimmable transformers
  • Easy to adapt to different lamps thanks to automatic load detection
  • Adjustable dimming curve for precise and flicker-free dimming
  • 2 binary inputs for floating contacts such as buttons, switches, temperature sensor (I2)
  • The binary inputs are assigned to the dimming output as standard (function test before programming)
  • Integrated temperature monitoring for increased operating safety, e.g. in the event of overload
SKU: 4941670 Category:


Operating voltage 230 V AC 50 – 60 Hz
Frequency 50 – 60 Hz
Installation type Flush-mounted
Type of connection Screw terminals
Number of channels 1
Incandescent/halogen lamp load 250 W
LED lamp (trailing edge) 250 W
Type Base module
Protection class II
