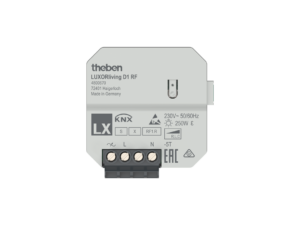

LUXORliving D1 Flush Mount Dimming Actuator

£76.74 + VAT

  • LUXOR 4800570, LXL 4800570
  • 1-way wireless flush-mounted dimming actuator LUXORliving
  • Encrypted wireless communicatio
  • Optimised dimming output for dimmable energy-saving lamps, LEDs, incandescent and halogen lamps, and dimmable transformers
  • Easy to adapt to different lamps thanks to automatic load detection
  • Adjustable dimming curve for precise and flicker-free dimming
  • 2 binary inputs for floating contacts such as buttons, switches, temperature sensor (I2)
  • The binary inputs are assigned to the dimming output as standard (function test before programming)
  • Integrated temperature monitoring for increased operating safety, e.g. in the event of overload
SKU: 4800570 Categories: , Tags: ,


Operating voltage 230 V AC 50 – 60 Hz
Frequency 50 – 60 Hz
Stand-by consumption ~0.4 W
Installation type Flush-mounted
Number of channels 1
Incandescent/halogen lamp load 250 W
LED lamp < 2 W 22 W
LED lamp 2-8 W 250 W
LED lamp > 8 W 250 W
Ambient temperature -5°C … 45°C
Protection class II



LUXORliving has all the benefits of a full bodied KNX installation without the requirement for a system integrator. End users are able to program and maintain their system including setup of timers and scenes.
