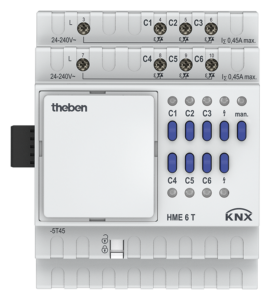

Theben HME 6 T KNX Heating Actuator

£106.14 + VAT

  • 6-way heating actuator MIX2
  • With 6 temperature controllers (P/PI) for heating and cooling
  • Extension module MIX2
  • For upgrading to maximum of 18 channels
  • For controlling thermal actuators 24 V – 240 V AC in 2 groups with 3 outputs and 450 mA each
  • (Due to the switch-on behaviour of the actuators, we recommend not to exceed a maximum load of 3×1 actuators 24 V AC or 3×5 actuators 230 V AC)
  • Short-circuit-proof and overcharge protected
  • Continuous or switching actuating value selectable
  • Valve protection function can be deactivated
  • With the modes: comfort, standby, night as well as frost/heating protection
  • Changeover to summer mode possible
  • Up to two extension modules MIX or MIX2 can be connected to one base module
  • Device and KNX bus module can be swapped independently of each other
  • Removable KNX bus module enables devices to be changed without reprogramming
  • Manual set-up and use of actuator is possible without KNX bus module
  • LED switching status display for each channel
  • Manual operation on device (even without bus connection)
SKU: 4930245 Categories: ,

Description

  • 6-way heating actuator MIX2
  • With 6 temperature controllers (P/PI) for heating and cooling
  • Extension module MIX2

Brand

Theben

German manufacturer with of high quality KNX components including actuators, binaries and DALI.
