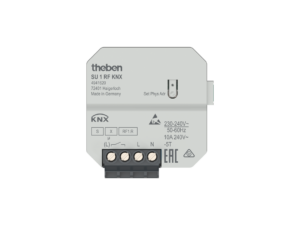

Theben KNX RF Switch Actuator Binary

£57.58 + VAT

  • 1-way wireless flush-mounted switch actuator KNX
  • Secure communication via KNX-RF with support of “KNX Data Secure”
  • Adjustable features: NC/NO contact, switching, delayed switching, pulse function
  • 2 binary inputs for floating contacts such as buttons, switches, temperature sensor (I2)
  • The binary inputs are assigned to the switch output as standard (function test before programming)
  • Integrated temperature monitoring for increased operating safety, e.g. in the event of overload
SKU: 4941620 Category: Tags: ,

Description

Operating voltage KNX Bus voltage
Operating voltage 230 – 240 V AC 50 – 60 Hz
Frequency 50 – 60 Hz
Installation type Flush-mounted
Type of connection Screw terminals
Number of channels 1
Type of contact 10 A
Incandescent/halogen lamp load 1800 W
Halogen lamp load 1800 W
LED lamp < 2 W 50 W
LED lamp 2-8 W 600 W
LED lamp > 8 W 600 W
Inrush current max. 740 A / 200 µs
Type Base module
Protection class II



Brand

Theben

German manufacturer with of high quality KNX components including actuators, binaries and DALI.
