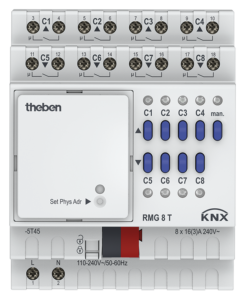

Theben RMG 8 Channel Switching Actuator (MIX2 Base Module)

£221.06 + VAT

8-way switching or 4-way blind actuator MIX2
Base module MIX2
Can be upgraded to maximum of 24 channels
Flexible channel function selection as switching actuator or for controlling drives for blinds, shutters, sun and vision protection devices, skylights and ventilation flaps
Up to two extension modules MIX or MIX2 can be connected to one base module
Device and KNX bus module can be swapped independently of each other
Removable KNX bus module enables devices to be changed without reprogramming
Manual set-up and use of actuator is possible without KNX bus module
LED switching status display for each channel
Manual operation on device (even without bus connection)

Description

Operating voltage KNX	Bus voltage, ≤4 mA
Operating voltage	110 – 240 V AC 50 – 60 Hz
Frequency	50 – 60 Hz
Stand-by consumption	~0.3 W
Capacity loss max.	6.4 W
Installation type	DIN rail
Width	4 modules
Type of connection	Terminal screws \| Bus connection: KNX bus terminal
Max. cable cross section	Solid wire: 0.5 mm² (Ø 0.8) to 4 mm² \| Stranded wire with end sleeve: 0.5 mm² to 2.5 mm²
Number of channels	8
Type of contact	NO contact, 16 A, 3 A
Opening width	< 3 mm
Incandescent/halogen lamp load	2000 W
Fluorescent lamp load (conventional) parallel-corrected	1300 W (140 µF)
Fluorescent lamp load (conventional) not corrected	2000 VA
Fluorescent lamp load (electronic ballast)	1200 W
Energy saving lamps	300 W
LED lamp < 2 W	55 W
LED lamp 2-8 W	600 W
LED lamp > 8 W	600 W
Inrush current	max. 800 A / 200 µs
Voltage output	240 V AC
Switching output	Potential-free
Switching of various phases	Possible
Suitable for SELV	Yes if all channels switch at SELV
C load
Type	Base module
Ambient temperature	-5°C … 45°C
Type of protection	IP 20
Protection class	II according to EN 60 669

German manufacturer with of high quality KNX components including actuators, binaries and DALI.
