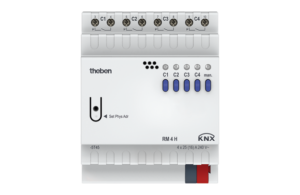

RM 4 Channel 25A KNX Switching Actuator (FIX1)

£280.32 £252.29 + VAT

  • 4-way high-performance switching actuator FIX1
  • Bistable relays
  • Switching capacity 25 A
  • LED switching status display for each channel
  • Manual operation on device
  • Switching functions: On/Off, pulse, On/Off delay, staircase light with warning
  • Logical links: e.g. lock, AND, release, OR
SKU: 4940212 Category: Tags: , ,

Description

Operating voltage KNX <10 mA
Installation type DIN rail
Width 4 modules
Type of connection Terminal screws | Bus connection: KNX bus terminal
Max. cable cross section Solid wire: 0.5 mm² (Ø 0.8) to 4 mm² | Stranded wire with end sleeve: 0.5 mm² to 2.5 mm²
Number of channels 4
Type of contact 25 A, 16 A
Opening width < 3 mm
Resistive load 4800 W
Energy saving lamps 410 W
LED lamp < 2 W 75 W
LED lamp 2-8 W 850 W
LED lamp > 8 W 850 W
Inrush current max. 1200 A / 200 µs
Switching of various phases Possible
C load
Type Module FIX1
Ambient temperature -5°C … 45°C
Type of protection IP 20
Protection class II according to EN 60 669
