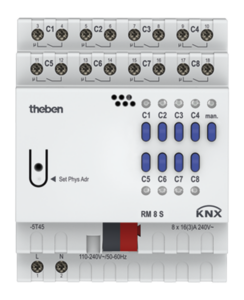

Theben RM 8 Channel KNX Switching Actuator (FIX1)

£358.54 £322.69 + VAT

  • 8-way switching actuator FIX1
  • LED switching status display for each channel
  • Manual operation on device (even without bus connection)
  • Adjustable characteristics: e.g. switching, delayed switching, pulse function
  • Links, type of contact (NC contact/NO contact) and participation in central commands such as continuous On, continuous Off, central switching and save/call up scene
  • Switching functions: On/Off, pulse, On/Off delay, staircase light with warning
  • Logical links: e.g. lock, AND, release, OR
SKU: 4940220 Category: Tags: , ,

Description

Operating voltage KNX Bus voltage, ≤4 mA
Operating voltage 110 – 240 V AC 50 – 60 Hz
Frequency 50 – 60 Hz
Stand-by consumption ~0.3 W
Installation type DIN rail
Width 4 modules
Type of connection KNX bus terminal
Max. cable cross section Solid wire: 0.5 mm² (Ø 0.8) to 4 mm² | Stranded wire with end sleeve: 0.5 mm² to 2.5 mm²
Number of channels 8
Type of contact NO contact, 16 A, 3 A
Opening width < 3 mm
Resistive load 3680 W
Incandescent/halogen lamp load 2000 W
Fluorescent lamp load (conventional) parallel-corrected 1300 W (140 µF)
Fluorescent lamp load (conventional) not corrected 2000 VA
Fluorescent lamp load (electronic ballast) 1200 W
Energy saving lamps 300 W
LED lamp < 2 W 55 W
LED lamp 2-8 W 600 W
LED lamp > 8 W 600 W
Inrush current max. 800 A / 200 µs
Voltage output 240 V AC
Switching output Potential-free
Switching of various phases Possible
Suitable for SELV Yes if all channels switch at SELV
C load
Type Module FIX1
Ambient temperature -5°C … 45°C
Type of protection IP 20
Protection class II
