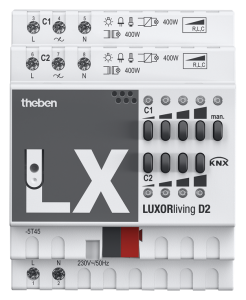

LUXORliving Dimming Actuator

£193.95£284.62 + VAT

  • LUXOR 4800470, LUXOR 4800475, LXL 4800470, LXL 4800475
  • 2 or 4 Channel Universal Dimming
  • 200W Per Channel with 0-100% Dimming
  • LED Indicators
  • Manual Overrides
  • 110-240V AV Input


Switching Actuators are used to control the Dimming of Lighting circuits throughout a building as a replacement for Wall mounted conventional switches.

Operating voltage KNX ≤10 mA
Operating voltage 230 V AC
Stand-by consumption ~0.9 W
Width 4 modules
Installation type DIN rail
Number of channels 2 or 4
Lamp types Incandescent, low-voltage and high-voltage halogen and dimmable energy saving lamps and LED
Incandescent/halogen lamp load 200 W
LED lamp Trailing edge (RC-mode): 200 W
Energy saving lamps Trailing edge (RC-mode): 200 W
Type of protection IP 20
Protection class II according to EN 60 669



LUXORliving has all the benefits of a full bodied KNX installation without the requirement for a system integrator. End users are able to program and maintain their system including setup of timers and scenes.

Additional information


2 Channel, 4 Channel
