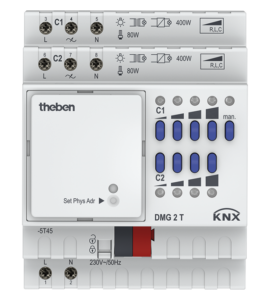

Theben DMG 2 Channel Dimming Actuator (MIX2 Base Module)

£216.14 + VAT

  • 2-way universal dimmer actuator MIX2
  • Base module MIX2
  • Can be upgraded to maximum of 6 channels
  • For dimming dimmable LED, incandescent lamps, LV, HV halogen lamps and energy saving lamps
  • Also suitable for dimming of dimmable energy-saving lamps
  • Also suitable for controlling fans
  • Up to two extension modules MIX or MIX2 can be connected to one base module
  • Device and KNX bus module can be swapped independently of each other
  • Removable KNX bus module enables devices to be changed without reprogramming
  • Manual set-up and use of switching actuators is possible without KNX bus module
  • LED switching status display for each channel
  • Manual operation on device (even without bus connection)
  • Dimming output: 400 W/VA per channel or 800 W/VA in parallel operation
  • The dimming output can be upgraded by using additional dimmboosters “DMB 1 T KNX” – dimming output 300 W/VA for each dimmbooster. Output to a maximum of 2000 W/VA by using max. 4 boosters possible
  • Automatic load detection (can be deactivated)
  • For R, L and C loads

Description

Content here shortly

Operating voltage KNX Bus voltage, ≤4 mA
Operating voltage 230 V AC 50 Hz
Frequency 50 Hz
Stand-by consumption ~0.9 W
Capacity loss max. 4.5 W
Width 4 modules
Installation type DIN rail
Type of connection Terminal screws | Bus connection: KNX bus terminal
Max. cable cross section Solid wire: 0.5 mm² (Ø 0.8) to 4 mm² | Stranded wire with end sleeve: 0.5 mm² to 2.5 mm²
Number of channels 2
Lamp types Incandescent, low-voltage and high-voltage halogen and dimmable energy saving lamps and LED
Switching capacity per channel 400 W
Switching capacity in parallel operation 800 W
LED lamp Trailing edge (RC-mode): 400 W
Energy saving lamps Trailing edge (RC-mode): 400 W
Switching capacity min. 5 W
Max. cable length 100 m
Ambient temperature -5°C … 45°C
Type of protection IP 20
Protection class II according to EN 60 669

Brand

Theben

German manufacturer with of high quality KNX components including actuators, binaries and DALI.
