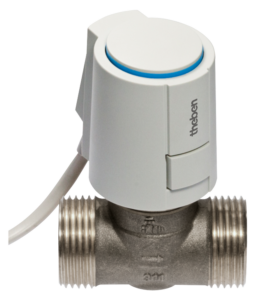

ALPHA 5 230V Manifold Valve Actuator

£41.97 + VAT

  • Actuator for radiators, heating circuit distributors or individual heating circuits
  • Operating voltage 230 V AC
  • For opening and closing of valves in the fields of heating, ventilation and air conditioning
  • The actuator control is by a room thermostat with two-point output or pulse-width-modulation
  • Inrush current max.: : < 550 mA for max. 100 ms
  • “First open function” for easy installation and heating start-up
  • Plug-in installation on valve adapter to suit the most common valve bottoms and heating circuit distributors
  • Normally closed (Valve is closed when the operating voltage is cut)
  • Simple snap-on mounting to a valve adapter
  • Valve adapter not included in delivery
  • 100% protection against damaging drives through leaking valves
  • Function and adjustment checking
  • Installation vertical, horizontal and up-side-down possible
  • Up-side-down position may reduce product life through special circumstances (e.g. contaminated water)
  • Guaranteed overvoltage protection
SKU: 9070441 Category: Tag:


Operating voltage 230 V AC
Stand-by consumption ~1 W
Max. valve stroke 4 mm
Controlling torque details 100 N
Runtime ca. 3 min
Installation type Locks on valve adapter
Type of connection 2 x 0,75 mm2 PVC, grey 1 m
Ambient temperature 0°C … 60°C
Stock temperature -25°C … 60°C
Medium temperature <100°C
Dimensions 44 mm, 60 mm, 61 mm
Colour White
Protection class II
Type of protection IP 54
