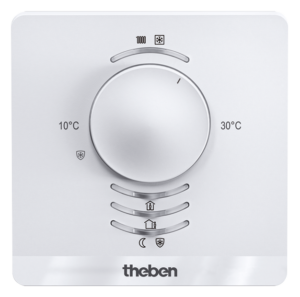

RAMSES 718 KNX Room Thermostat

£202.94 £182.65 + VAT

  • Individual room thermostat
  • For controlling heating actuators or motorised actuators
  • Can be used as a continuous or two point control (can also be combined).
  • Continuous PI control can be configured for 2 stage heating (basic and additional stage, e. g. underfloor heating and radiators) or for heating and cooling (radiators and cooling surfaces)
  • Two front panels are included in delivery: a numerical scale and a relative scale
  • Rotary control can be limited via parameters
  • Manual override button for presence or operation modes: comfort, stand-by, temperature reduction at night, frost protection
  • 4 binary inputs for conventional switches/sensors (switching, dimming, blinds), also for externeal temperature sensor, window contact or presence signal
  • Temperature sensor can be connected to give remote temperature reading
  • LED (red) for heating mode, (blue) for cooling mode, LEDs for operation mode
SKU: 7189210 Category: Tag:

Description

Content here shortly

Operating voltage KNX Bus voltage, ≤12 mA
Type of connection Bus connection: KNX bus terminal | Sensor connection: Terminal screws
Installation type Surface-mounted
Display LEDs
Interface extension max. 30 m
Ambient temperature 5°C … 40°C
Measuring range temperature -5°C … 45°C
Setting range temperature 10°C … 30°C
Contact voltage 5 V Internal provided
Contact current 0.5 mA
Number of inputs 4
Type of protection IP 20
Protection class III according to EN 60 730-1
