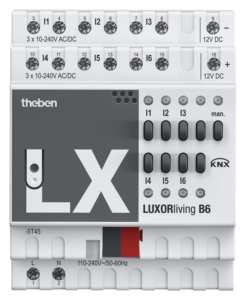

LUXORliving B6 Channel Binary Input (Din-Rail)

  • LUXOR 4800430, LXL 4800430
  • 6-way binary input LUXORliving
  • 6 floating universal and wide-range voltage inputs (10-240 V AC/DC or internally generated auxiliary voltage of approx. 12 V DC)
  • Software functions: Switch/push-button, dimming, blinds
  • LED switching status display for each channel
  • Manual operation on device

£223.64 + VAT

Description

Operating voltage 110 – 240 V AC
Stand-by consumption <0.3 W
Width 4 modules
Installation type DIN rail
Output 12 V DC/18 mA, SELV
Display 6 LEDs zur Anzeige des Zustandes am Eingang
Suitable for SELV Yes, if all inputs are connected with SELV
Type of protection IP 20
Protection class II according to EN 60 730-1

Brand

LUXORliving

LUXORliving has all the benefits of a full bodied KNX installation without the requirement for a system integrator. End users are able to program and maintain their system including setup of timers and scenes.
