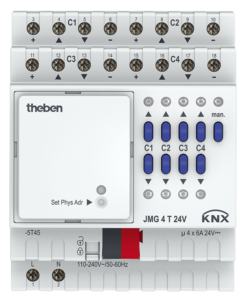

Theben JMG 4 Channel 24V Blind Actuator (MIX2 Base Module)

£176.89 + VAT

4-way blind actuator 24V MIX2
Base module MIX2
Can be upgraded to maximum of 12 channels
For controlling 24V drives for blinds, shutters, sun and vision protection devices, skylights and ventilation flaps
Up to 2 extension modules can be connected to a base module
Up to two extension modules MIX or MIX2 can be connected to one base module
Device and KNX bus module can be swapped independently of each other
Removable KNX bus module enables devices to be changed without reprogramming
Manual set-up and use of actuators is possible without KNX bus module
Free combination of switches, dimming, blinds and heating control as well as binary inputs
For controlling drives for blinds, shutters, sun and vision protection devices, skylights and ventilation flaps
Manual operation on device (even without bus connection)
LED Up and Down switching status display for each channel
Potential-free contacts for Up and Down per channel
Setting option for phase sequence and running time of deives
Copy function for fast configuration

Information Table
Lead Time	Typically 2-4 Weeks

Operating voltage KNX	Bus voltage, ~4 mA
Operating voltage	110 – 240 V AC 50 – 60 Hz
Stand-by consumption	~0.3 W
Frequency	50 – 60 Hz
Number of channels	4
Width	4 modules
Installation type	DIN rail
Type of connection	Terminal screws \| Bus connection: KNX bus terminal
Max. cable cross section	Solid wire: 0.5 mm² (Ø 0.8) to 4 mm² \| Stranded wire with end sleeve: 0.5 mm² to 2.5 mm²
Output	Changeover contact, 6 A
Switching capacity	6 A at 24 V DC
Switching output	Potential-free, for SELV, if the whole device switches SELV
Ambient temperature	-5°C … 45°C
Type of protection	IP 20
Protection class	II according to EN 60 730-1

Brand

German manufacturer with of high quality KNX components including actuators, binaries and DALI.
