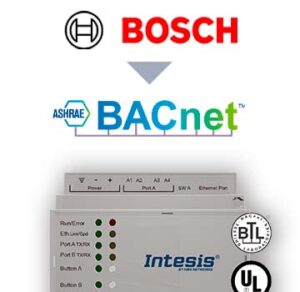

Intesis Commercial AC & VRF systems to BACnet MSTP Interface – 4 units

Description

The Bosch interface has been specially designed to allow bidirectional control and monitoring of Bosch VRF systems from a BMS, SCADA, PLC or any other device working as a BACnet IP Server or a BACnet MSTP Master.

• UL Certified
• BTL Certified
• Direct access to outdoor unit’s communication bus.
• Scan: Automatic identification of the units presents in the VRF system.
• Outdoor unit’s signals available for the integration.
• Supports both BACnet/IP and BACnet MSTP physical layers.
• Datalogging through external USB port.
• Configuration through IP or USB (Console) port.
• Front cover LED indicators to provide easy to check communication status on both the Ethernet and serial ports.
• Automatic updates for both Intesis MAPS and interface’s firmware.

DIRECT CONNECTION TO THE OUTDOOR UNITS

The gateway is wired directly to the XY terminals of the outdoor unit. Up to 4 indoor units are suported. This allows the control of the main AC functions such as on/off, mode, fan speed, vane position, temperature set point.

CONFIGURATION

The gateway is configured using our free configuration tool MAPS, that also includes a Diagnostic tool to help you in the commissioning tasks and troubleshooting.
